Reviewed 17 October 2026 · schematic not to scale

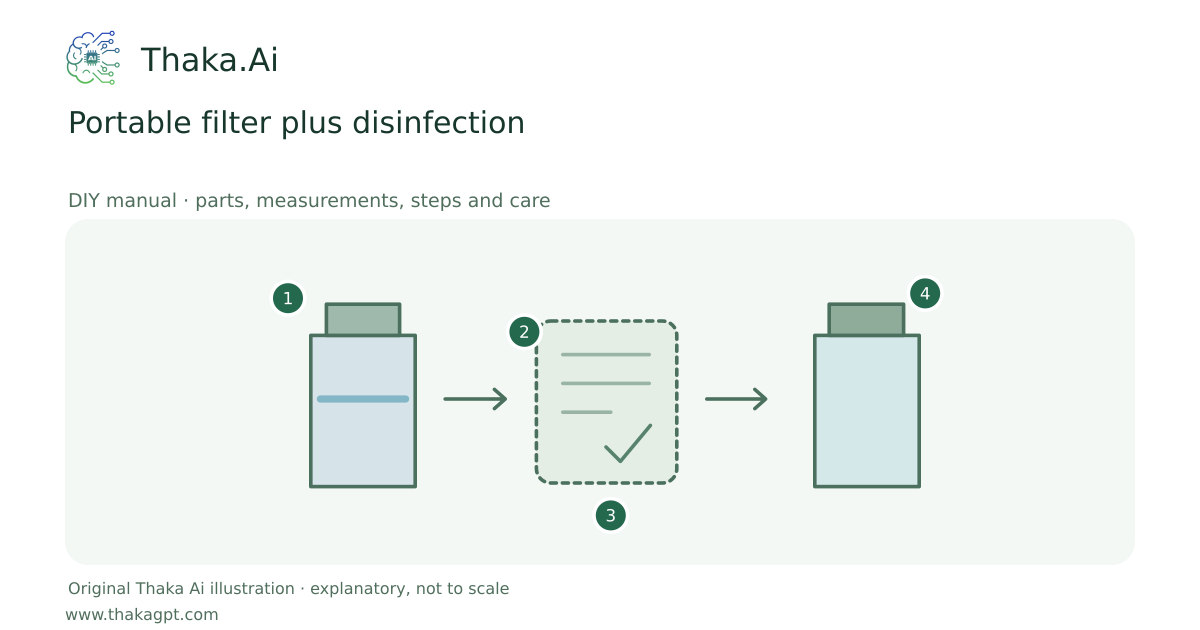

Build a clean/dirty workflow around a documented portable filter and a compatible drinking-water disinfectant.
- 1Assess raw water; avoid chemical/salt contamination
- 2One documented treatment sequence
- 3Observe full time, clarity and equipment limits
- 4Protected clean storage and a backup supply
Site and operating requirements
- Identify intended use and likely biological, chemical and salt contamination before choosing treatment. Obtain suitable water testing.
- Keep raw-water and treated-water containers, tools and hands separate. Use clean covered storage.
Tools and measuring equipment
- Volume-marked bottle and timer
- Device-specific cleaning or integrity kit
Output and operating conditions
Absolute pores ≤0.3 μm remove bacteria and parasites, not viruses. Add a documented disinfection stage as required.
Treatment ratings belong to the complete selected device. Example 1–2 L collection bags are packing sizes, not performance specifications.Parts, quantities and dimensions
| Part | Quantity | Specification / dimensions |
|---|---|---|
| Portable filter with documented rating | 1 | Choose bacteria/parasite capability and pressure limits appropriate to the source; inspect the complete manual. |
| Matched vessels and hose | 1 set | Separate dirty inlet from clean outlet; example 1–2 L vessels. Use only rated gravity head or pump pressure. |
| Drinking-water disinfectant | trip allowance | Use an in-date product with a readable dose, volume, temperature and contact-time label. |
Preparation and component checks
- Read virus and parasite claims separately.
- Carry backup treatment and enough drinking water for delays.
Procedure
- 1
Select a fresh-water source and reject suspected fuel, industrial runoff or algal-toxin contamination.
- 2
Wash hands and label dirty and clean containers before connecting anything.
- 3
Inspect the filter, seals and hoses; perform the model-specific integrity and priming checks.
- 4
Filter into the clean vessel using the specified head or pressure, without letting the dirty hose touch its mouth.
- 5
Apply the labelled disinfectant dose to the measured filtered volume; mix and wait the complete labelled time.
- 6
Close and mark the ready-to-use vessel. If treatment fails, use a carried supply or boil suitable fresh water.
Ready-to-use checklist
- Dirty and clean sides stayed separate.
- Every required treatment stage is complete.
Safety and inspection
No printed filter cartridge, charcoal-and-sand bottle or pore-size guess proves safe drinking water. Most hiking filters do not desalinate or remove chemical contamination.
Verify the result
Check absolute pore rating, intact seals, treatment volume and full disinfectant contact time. Reject a filter that failed its integrity check.
Measurement log
- Filter condition, batch volume and elapsed contact time.
- Cleaning history and chemical expiry.
Maintenance and repeat checks
- Backflush or clean only as instructed; use clean water and keep clean-side fittings protected.
- Follow wet-filter freeze and storage rules; damage may be invisible. Replace expired chemicals before travel.
Troubleshooting
- Flow/cycle outside the documented range or failed test
- Do not use the output for drinking. Recheck raw-water quality, batch volume, seals/media/device status and the complete source instructions. Retest after correction.
